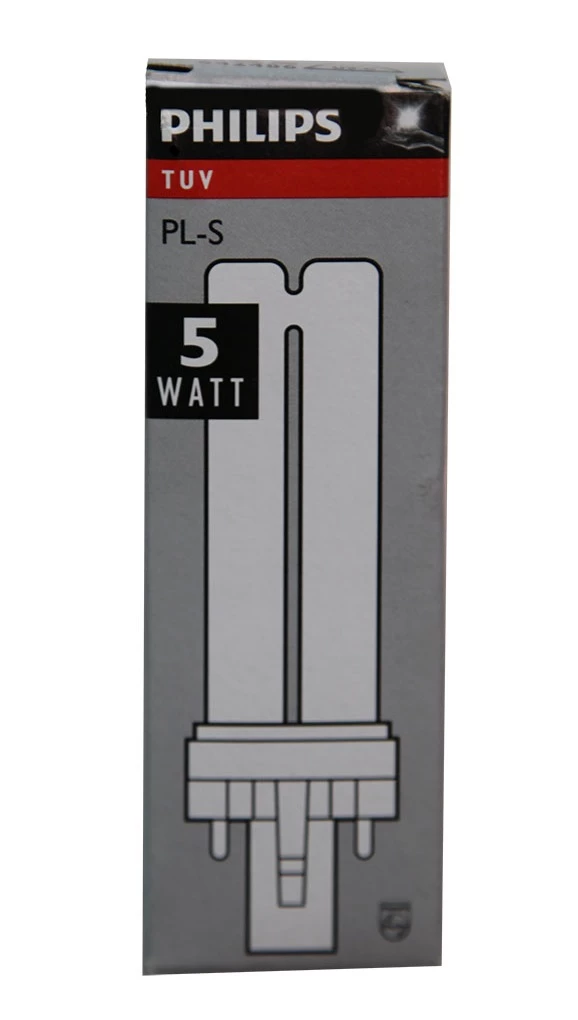

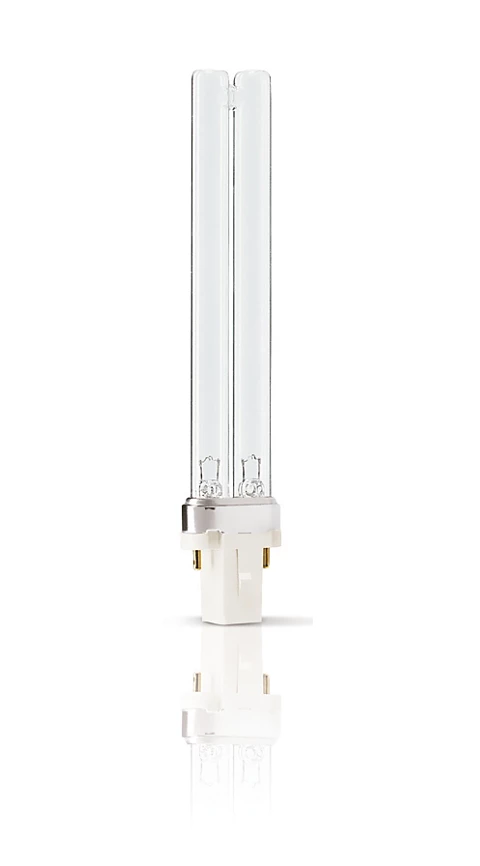

Philips UV Lamp 5W PL S

The Philips TUV PL-S 5W/2P is a compact UVC germicidal lamp used in residential water and air disinfection units. It emits ultraviolet (UV-C) light at a wavelength of 254 nanometers (nm), which is the most effective wavelength for killing bacteria and other microorganisms.

The TUV PL-S 5W/2P is a reliable and effective way to disinfect water. It is easy to install and replace, and it has a long lifetime of up to 9,000 hours.
TUV PL-S lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.
Thanks to the single-ended lamp base, lamp replacement is easy.

Product	D1 (max)	D (max)	A (max)	B (max)	C (max)
TUV PL-5W	13mm	28mm	67mm	83mm	105mm

Cap-Base: G23
Main Application: Disinfection
Useful Life (Nom): 9000 h
Colour Code: TUV
Depreciation at Useful Lifetime: 20%
Power (Nom): 5.5W
Lamp Current (Nom): 0.18 A
Voltage (Nom): 34V
Cap-Base Information: 2Pins
Mercury (Hg) Content (Nom): 3.0g
UV-C Radiation at 100 hr: 1.1W
Net Weight: 22g

Warnings and Safety
A lamp breaking is extremely unlikely to have any impact on your health.
If a lamp breaks, ventilate the room for 30 minutes andremove the parts, preferably with gloves.
Put them in a sealed plastic bag and take it to your local waste facilities for recycling.
Do not use a vacuum cleaner to clean up any broken lamps.

Danger
Risk Group 3 Ultra Violet product.
These lamps emit high-power UV radiation that can cause severe injury to skin and eyes.
Avoid eye and skin exposure to unshielded product.
Use only in an enclosed environment which shields users from the radiation.
