Ecotech Vectra L2 (Mobius) Return Pump

Same great performance – more robust and easier to work with.
The world’s smartest centrifugal pump just got tougher and more versatile.
Since its launch, the Vectra lineup has been evolving.

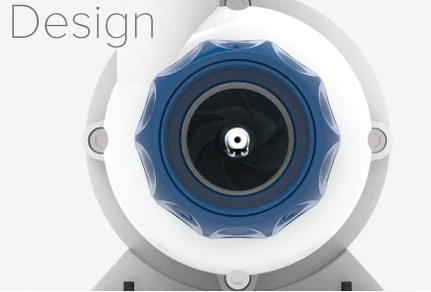

Design and material changes have ensured the reliability, thermal efficiency, and general operation of Vectra 2s are second to none. Improved couplings – specific for standard PVC – combined with ergonomic collars make the Vectra lineup easier to use.

Whats new?

• Input and Output Couplers
• New Base
• Tougher Motor Sleeve
• Improved Thermal Management
• Improved Ergonomics

EcoTech Marine has set new standards for equipment in saltwater aquariums. The Vectra is no exception. The world’s smartest return pump can be run on a schedule, wirelessly give you updates on the operation and be automatically configured to work with your specific aquarium setup.

Now with Mobius

Mobius is an advanced interface between you and your smart Ecotech Device. Simply download the app from Google Play or the Apple App Store. Mobius unleashes the full potential of your Mobius Ecotech Smart Device and provides it in a simplified app giving you full control at your finger tips. Best of all, Mobius is FREE!!!

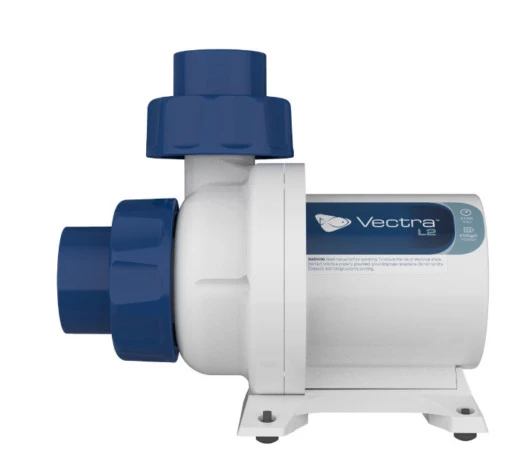

Ecotech Vectra L2 (Mobius) Return Pump
Flow: 11,500 lph (3,100 gph)
Wireless: Included
Max Head Pressure: 6.5 m (21.5 feet)
Footprint: 126.8mm x 215.15mm (5 in. x 8.5 in.)
*96w Power Supply
Fittings: Input: 38 mm (1.5 in.) Output: 31.75mm (1.25 in.)

Ecotech Vectra M2 (Mobius) Return Pump
Flow: 7,500 lph (2,000 gph)
Wireless: Included
Max Head Pressure: 6.5 m (21.5 feet)
Footprint: 113.5mm x 192.6mm (4.5 in. x 7.5 in.)
*96w Power Supply
Fittings: Input: 31.75 mm (1.25 in.) Output: 25mm (1 in.)

Ecotech Vectra S2 (Mobius) Return Pump
Flow: 5,300 lph (1,400 gph)
Wireless: Included
Max Head Pressure: 3.5 m (11.5 feet)
Footprint: 98.4mm x 165.4mm (3.8 in. x 6.5 in.)
*96w Power Supply
Fittings: Input: 25 mm (1 in.) Output: 19mm (.75 in.)

Calibration

The Vectra can be set to auto calibrate to your tank. As a return pump, this smart feature prevents back siphoning if the pump is turned down and also provides a neutral flow condition in feed mode.

ESL via Mobile Device

All Vectra pumps are compatible with ReefLink. Reeflink provides completely wireless access to the world of EcoSmart Live, the web-based aquarium command center from EcoTech Marine.

Battery Backup

Blizzard. Hurricane. A motorist hits a utility pole. Stuff happens. The power goes out… Vectra pumps are compatible with the EcoTech Battery Backup accessory.

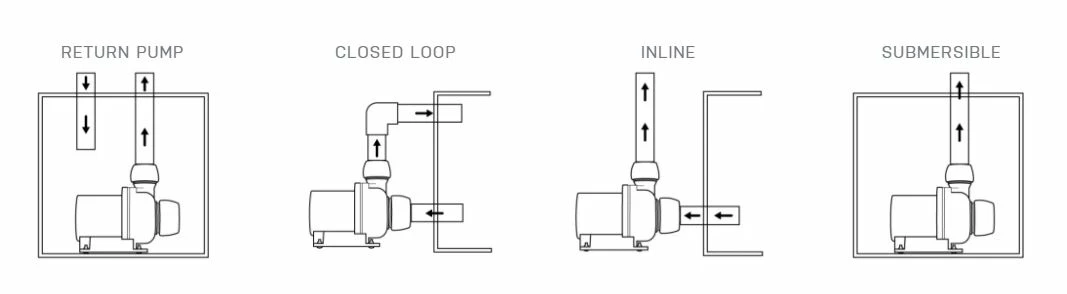

FLEXIBLE INSTALLATION

Included with the Vectra Pump are QuickCouple components,  these fitted couplers provide the flexibility to make installation, cleaning and adjustments a breeze. The Vectra also boasts the ability to rotate the volute of the pump to adapt to the needs of your plumbing setup.

•     Easy Connection
•     Fast Setup
•     Quick Disassembly
•     British Standard Pipe Threading

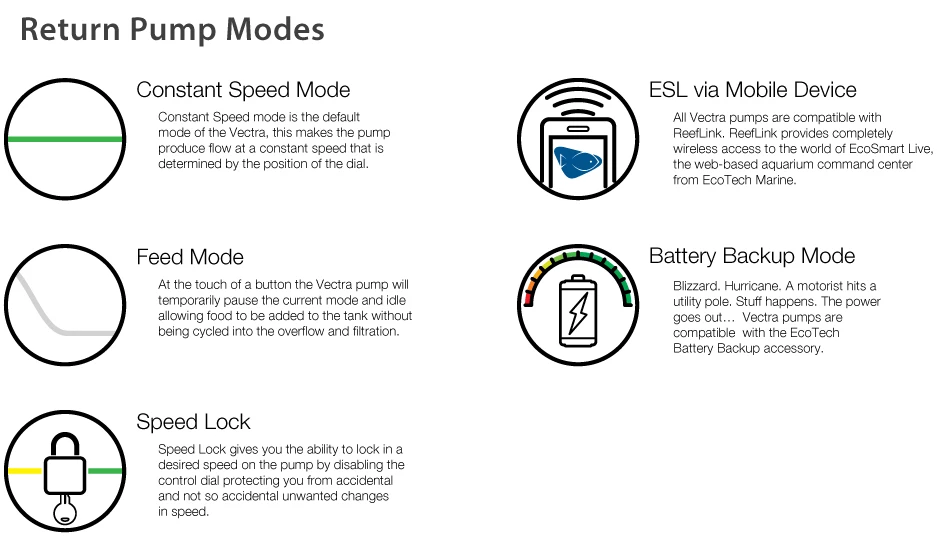

RETURN PUMP MODES

Constant Speed

Constant Speed mode is the default mode of the Vectra, this makes the pump produce flow at a constant speed that is determined by the position of the dial.

Feed Mode

At the touch of a button the Vectra pump will temporarily pause the current mode and idle allowing food to be added to the tank without being cycled into the overflow and filtration.

Speed Lock

Speed Lock gives you the ability to lock in a desired speed on the pump by disabling the control dial protecting you from accidental and not so accidental unwanted changes in speed.

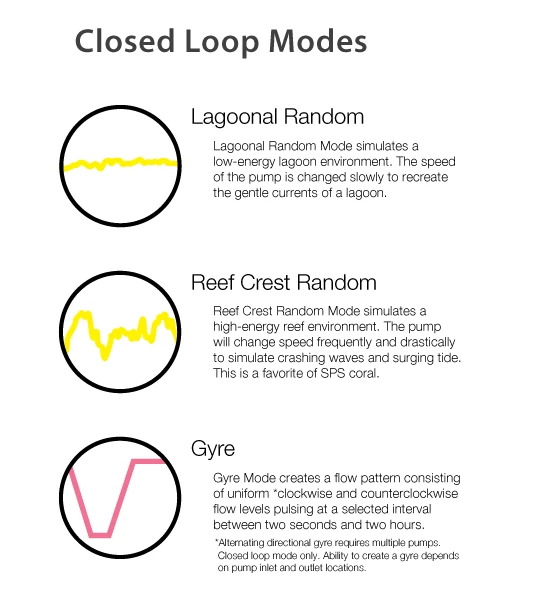

CLOSED LOOP MODES

Lagoonal Random

Lagoonal Random mode simulates a low-energy lagoon environment. The speed of the pump is changed slowly to recreate the gentle currents of a lagoon.

Reef Crest Random

Reef Crest Random mode simulates a high-energy reef environment. The pump will change speed frequently and drastically to simulate crashing waves and surging tide. This is a favorite of SPS coral.

Gyre

Gyre mode creates a flow pattern consisting of uniform clockwise and counterclockwise flow levels pulsing at a selected interval between two seconds and two hours.

ECOSMART LIVE COMPATIBLE

EcoSmart Live is EcoTech Marine’s web-based aquarium command center. It allows you to control your Vectra pumps, VorTech pumps and RadionLED lighting from anywhere in the world through a computer or mobile device (iOS and Android supported). EcoSmart Live is loaded with features such as setup guides, flow and lighting wizards, specialty modes, and the ability to create new modes with just the click of a mouse or tap of a finger.



Get real time information about your lighting and pumps or wirelessly update your product’s firmware. Having issues getting the coral growth that you expect? Our award winning customer service staff can log into your account and suggest changes for you.

BATTERY BACKUP COMPATIBLE

In an aquarium with no flow, fish and corals can begin to die in as little as 4 to 10 hours. The Battery Backup is reef tank insurance in an aluminum housing.

By adding the Battery Backup**, your tank is insulated from power interruptions, helping protect your valuable investment -and your tank inhabitants.

*Hours are estimated and will vary depending on battery life.
